Air Conditioning Unit

Home  >   Air Conditioning Unit

5TR / 30TR / 60TR / 70TR / 120TR / 140TR / 150TR & many more…

An ACU is used for supplying cold / hot Air into a parked aircraft's to sustain comfortable temperatures for passengers in relation to ambient conditions .The output air travels via One/Two hoses connected to the aircraft's under belly.

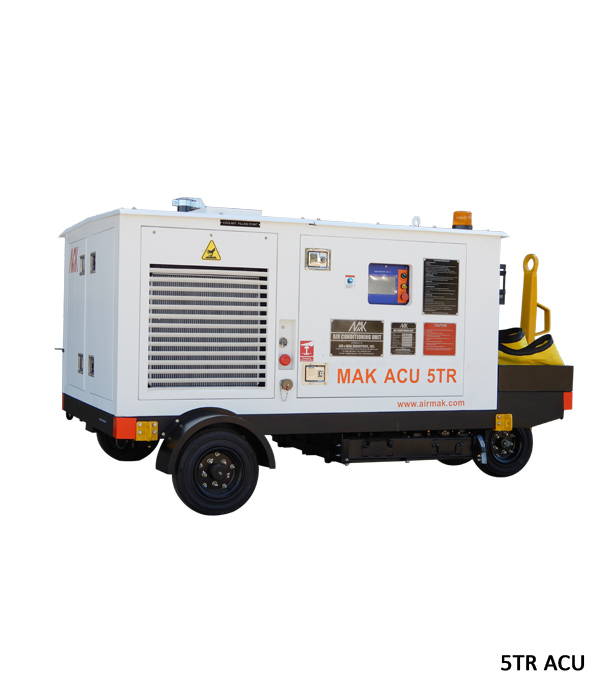

MAK design and manufacture Air Conditioning Units from 5TR to 150TR. Standard models are 30TR, 60TR, 65TR, 70TR, 110TR & 140TR manufactured as per commercial aircraft specifications. MAK has specially developed ACU's for corporate jets with 5TR capacity. MAK ACUs boast of 1 Lakh + hours of incident free operation and find satisfied customers among major civil airlines and defense organizations across the world.

MAK ACUs comes with a touchscreen control panel MAK GSEM V8-C and MAK RDMS-A feature rich fleet management software which transmits live operational data to a remote computer/mobile and alerts users in real-time of faults, alerts. With this software, users can plan maintenance schedules, ad-hoc service records, order spare parts... and much more, eliminating need for dedicated manpower per operation location.

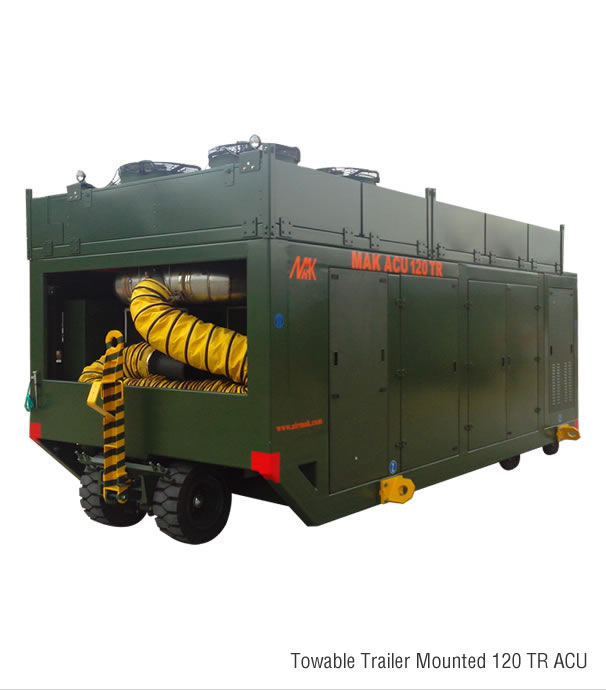

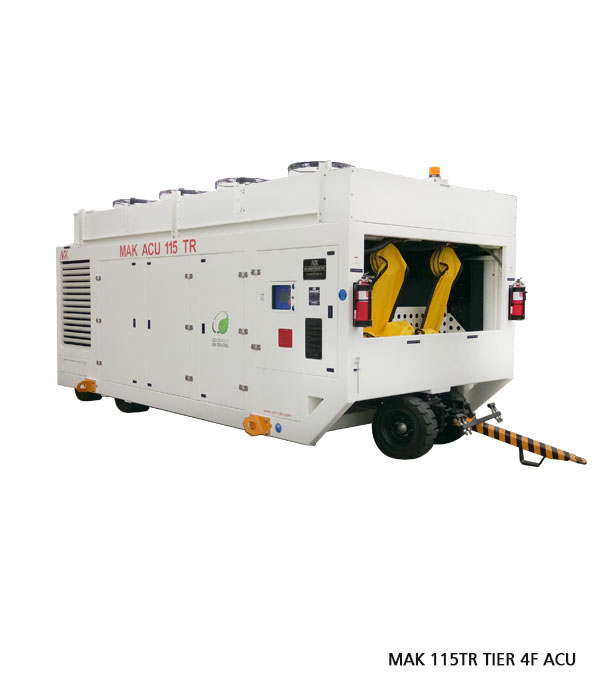

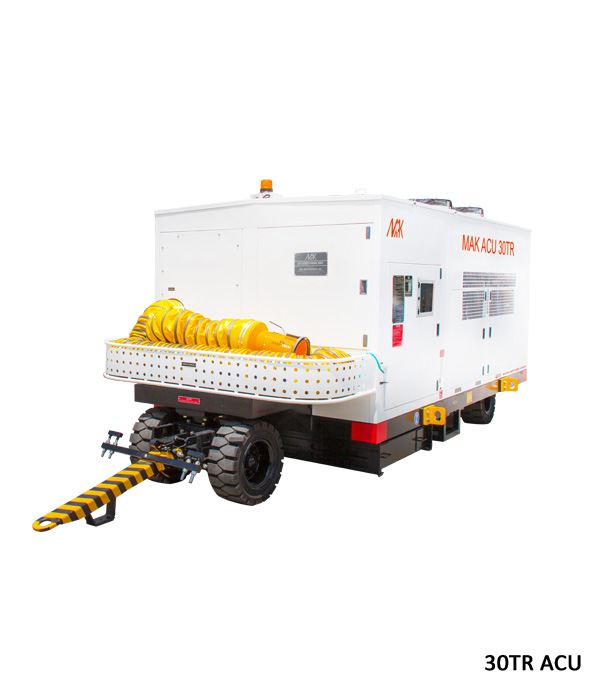

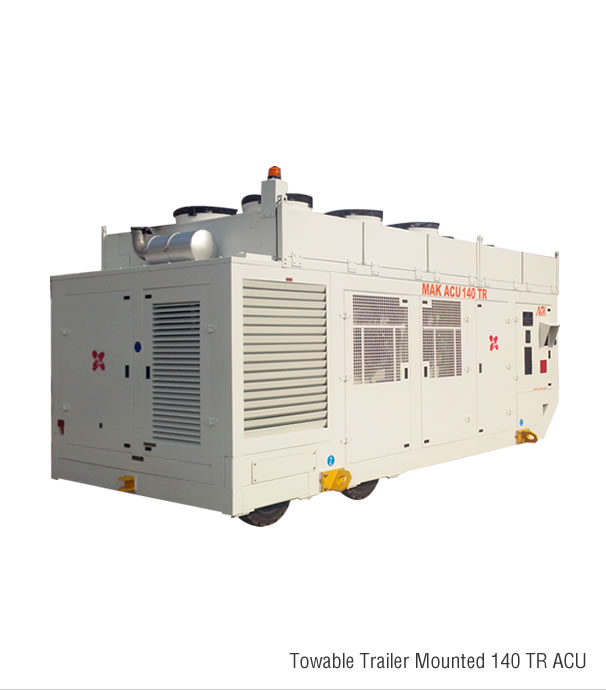

Available in Towable Trailer mounted / Skid Mounted / Self propelled configurations

Salient Features

  • Diesel engines from Deutz/Cummins equivalent conforming to latest EPA/Euro emission norms

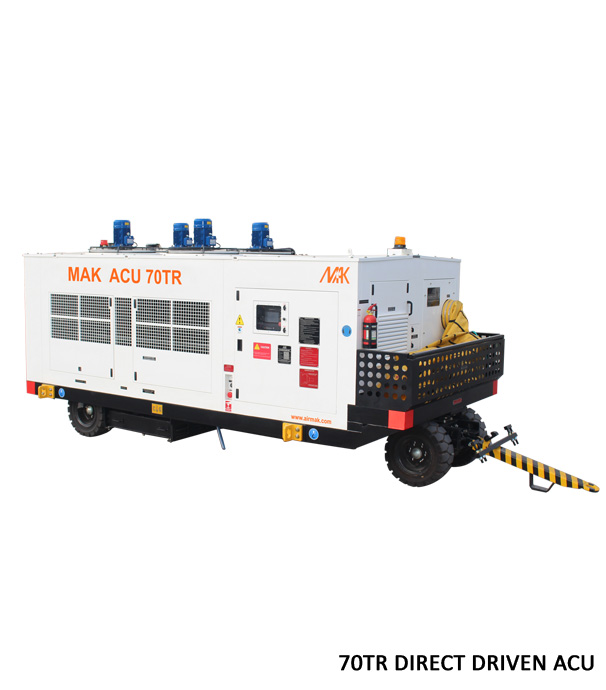

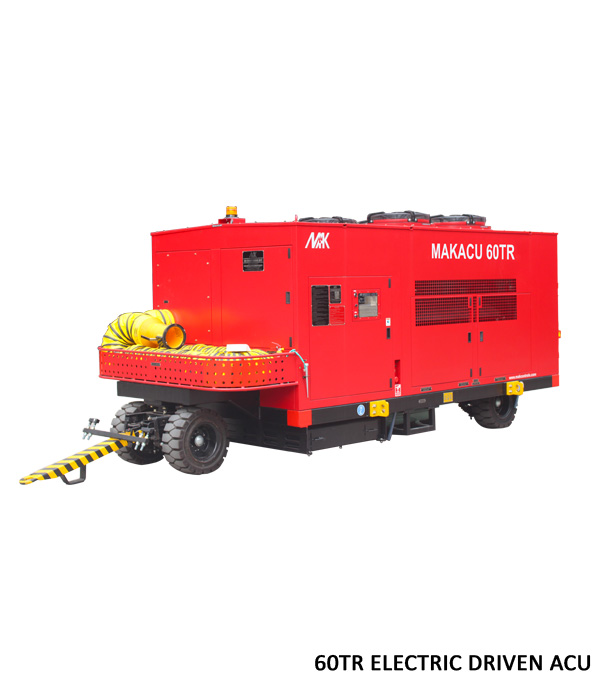

  • Direct / Electric driven models
  • Automatic temperature control
  • Low noise level
  • Meets MIL, AHM & ARP standards
  • Digital control system with touchscreen panel (MAK GSEM V8-C)
  •         Interactive GUI visible under all weather conditions
  •         Graphical representation of operational data
  •         Fault log chart & troubleshooting guide
  • MAK RDMS – Remote Diagnosis and Monitoring System (RDMS)

Technical Specification

PRIME MOVER
ENGINE : Deutz/Cummins or equivalent Diesel engine upto Tier4 final
Drive : Electrical/Direct
Alternator (electric drive only) : Stamford/Marathon or equivalent
REFRIGRANT SYSTEM
Compressor(Screw/Scroll) : Bitzer/J&E Hall Screw/Frascold or Equivalent Screw compressor
Condenser/Evaporator : Luve/Luvata or Equivalent
Refrigerant : R134a /R407c or Equivalent
environmental friendly refrigerant
Other refrigeration line
components
: Danfoss/Parker or equivalent
AIR FLOW AND TEMPERATURE
Blower : High pressure centrifugal Blower
Air output flow : 100 PPM to 860 PPM
Blower output pressure : Upto 48″ H2O based on
Aircraft requirement
Output temperature : 36°F to 54°F (2°C to 12°C)
(can be customized to suit any requirement)
COMMERCIAL UTILITY POWER AS POWER SOURCE OPTION
MOUNTING CONFIGURATION :
Towable trailer mounted / Self propelled / Skid mounted for truck/ Passenger Boarding Bridge(PBB) mounted
  • Electric driven only
ACU OPERATIONS MONITORING
Following parameters are displayed through GUI touch screen on a graphical format for quick interpretation.
  • Engine Lube Oil Pressure
  • Engine Coolant Temperature
  • Engine RPM
  • Fuel Level
  • Battery Voltage
  • Output Air Temperature
  • Set output Air Temperature
  • Output Pressure
  • Compressor Oil Temperature
  • Engine Hours Run
  • Battery Charging Current
  • Maintenance Shedule
ACU OPERATION PROTECTIONS
A. FOR ENGINE B. FOR ALTERNATOR
  • Low fuel warning / shut down
  • Low Lube Oil Pressure Shutdown
  • High Coolant Temperature Shutdown
  • Over Speed Shutdown
  • Low Fuel Shutdown
  • Low Coolant Indication
  • Charge Fail Indication
  • Air Filter Clog Indication
  • Over voltage
  • Under voltage
  • Over load
  • Over frequency
  • Under frequency
  • Phase reversal
C. FOR REFRIGERANT COMPRESSOR
  • Refrigerant High Discharge Pressure Shutdown
  • Refrigerant Low Suction Pressure Shutdown
  • High Compressor Oil Temperature shutdown
  • Low Compressor Oil Level shutdown
  • High Compressor Discharge Temperature shutdown
  • High Output Air Temperature Indication

*Due to continuous development, dimensions, layout, configuration and specifications are subject to change without notice.
