Air Start Unit

Mak Controls making quality Air Start Unit for over 45+ years of industrial experience, We are expert in manufacturing air start unit for aircraft usages. Air start unit are used for starting aircraft engines equipped with air starter. It supplies necessary quantity of air at specified pressure through one/two or three hoses attached to the aircraft's under belly.

MAK Controls design and manufacture Air start unit from 100PPM to 400PPM (customized units can be made to order). MAK Controls air start unit (ASU) are under operation with major commercial airlines and military organizations across the globe. We supplied custom designed Air Start Unit for endurance testing of world’s largest aircraft engine GE90-115B.

MAK Controls and Systems Air Start Unit comes with a touch-screen control panel GSEM V8-A and MAK RDMS – A feature rich fleet management software which transmits live operational data to a remote computer/mobile and alerts users in real-time of faults, alerts. With this software users can plan maintenance schedules, ad-hoc service records, order spare parts… and much more.

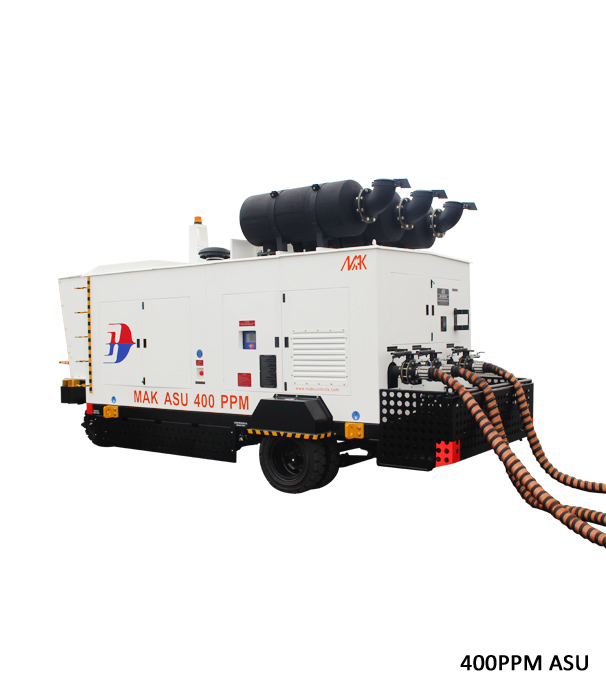

Select your Air start unit with Mak Controls and Systems, We stock an exclusive variety and large range of air start unit for Aircraft Requirements from100PPM / 120PPM / 180PPM / 250PPM / 400PPM & many more...

Aircraft Air Start Unit :

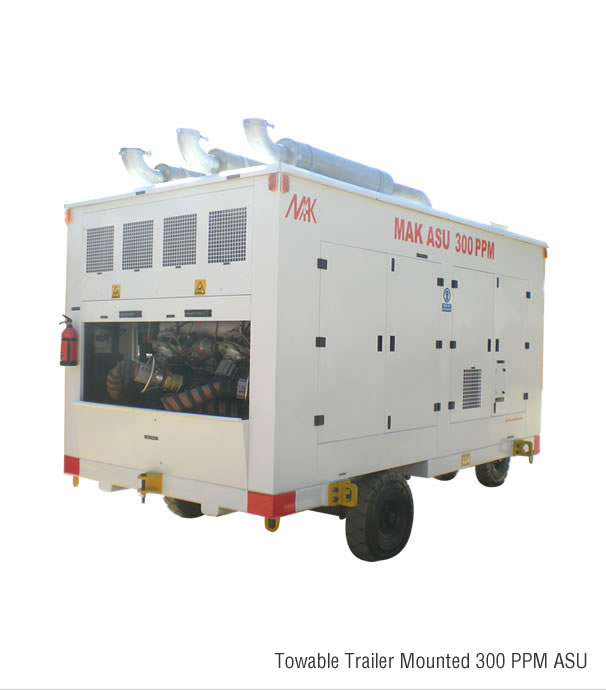

Air start unit are Available in Towable Trailer mounted / Skid Mounted / Self propelled configurations At Mak Controls we deliver a vast range of Air Start unit around the World. Our mission is to provide the highest quality air start unit for all aviation, airport, airlines and all aircraft requirements.

Air Start Unit Manufacturer in India

Mak Controls and Systems the largest Manufacturer of Air Start Unit in India and around The World – We are  one of the unique aspects of the air start unit manufacturer in India, Now Mak Air Start Unit are available in the latest models from 100 PPM to 400 PPM, Further information contact us Mak Controls and Systems.  Customers, Please have a look at our all features and specification of Air Start Unit.

Mak Controls and Systems manufactures and delivers industry-leading Air Start  to meet particular demands of the airline industry, All Mak products are sourced from top quality.  Here We are committed to helping for Your Ground Support Equipment Requirements

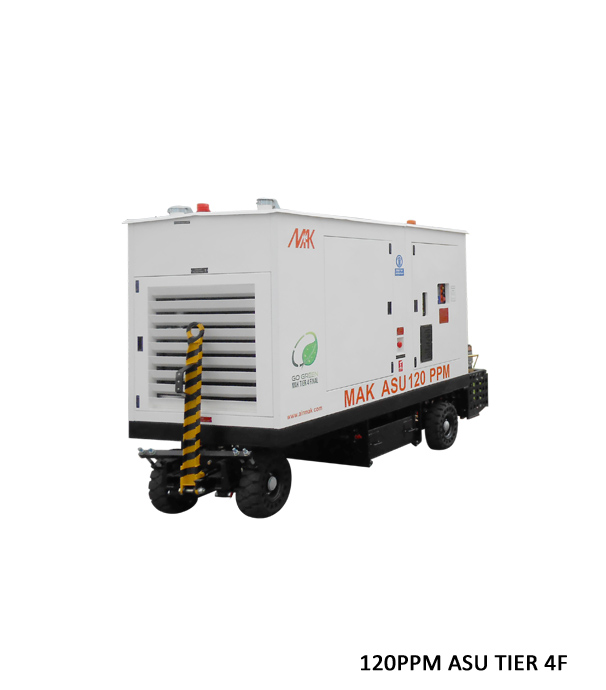

Air start unit120 PPM

air start unit

Air Start Unit

Air Start Unit / Air Start Cart Salient Features

  • Diesel engines from Deutz/Cummins equivalent conforming to latest EPA/Euro emission norms
  • MAK ASU  proprietary digital pressure control system automatically regulates the output air pressure/flow for different air crafts
  • Demand throttle for fuel efficient operation
  • Meets MIL, AHM & ARP standards
  • Low noise level
  • Digital control system with touchscreen MAK GSEM V8 – A
  • Interactive GUI visible under all weather conditions
  • Graphical representation of operational data
  • Fault log chart & troubleshooting guide
  • MAK RDMS – Remote Diagnosis and Monitoring System (RDMS)

If you’ve required for aircraft Air Start Unit, Mak Controls and Systems are amongst the best brands in the entire world for Air start units.

air start unit

Air Start Unit



Air Start Unit – SPECIFICATION

PRIME MOVER
Engine Cummins/Deutz/Detroit diesel Engines with latest EPA/EURO Emission compliance Tier4 final
COMPRESSOR
GHH – RAND/MAK or Equivalent oil free Screw compressor
TWIN MODE OPERATION
  • Jet start/AC packs modes have independent programmable supply pressures
  • Jet start @ 40 psig
  • Air packs @ 30 psig
PERFORMANCE SPECIFICATIONS FOR PNEUMATIC POWER
Discharge Pressure : 40 psig
Discharge Temperature : 392°F (200°C) working
OAT : -22°F to +118°F (-30°C to + 48°C)
PERFORMANCE SPECIFICATIONS FOR AC PACK (when used with onboard ECS)
Discharge Pressure : 30 psig
Operates under any weather conditions (rain, snow, hail, fog, wind, sand & dust)

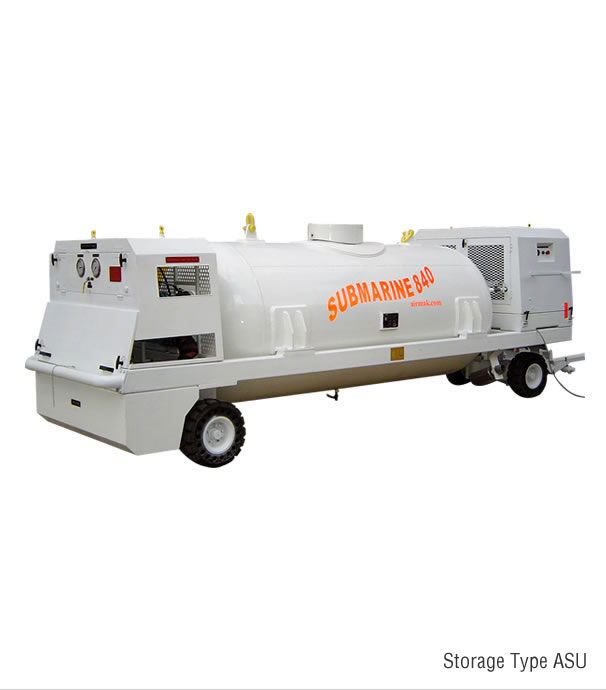

STORAGE TYPE ASU WITH INTEGRAL / SEPERATE CHARGING STATION ALSO AVAILABLE
MOUNTING CONFIGURATION :

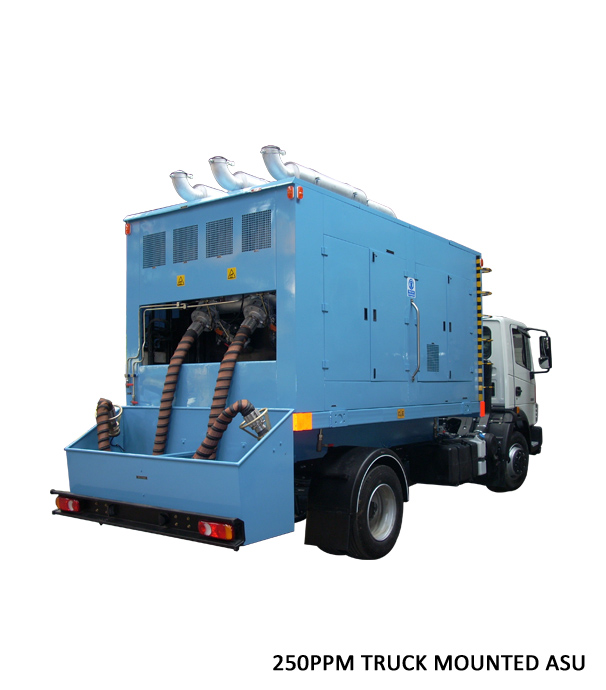

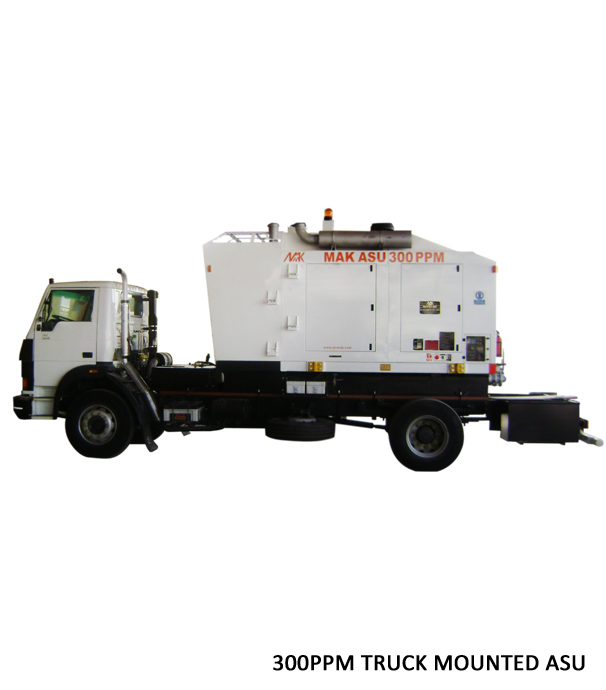

  • Towable trailer mounted / Self propelled / Skid mounted for truck
ASU OPERATIONS MONITORING
Following Parameters are displayed through GUI touch screen in graphical format for quick and easy interpretation.
ENGINE PARAMETERS
  • Engine oil pressure
  • Engine coolant temperature
  • Engine speed
  • Engine hours run
  • Real time
  • Battery charging current
  • Fuel level
COMPRESSOR PARAMETERS
  • Delivery air pressure
  • Delivery air temperature
PROTECTIONS
A. For Engine B. For Compressor
  • Low lube oil pressure shutdown
  • High coolant temperature shutdown
  • Over speed shutdown
  • Under speed shutdown
  • Low lube oil pressure shutdown
  • High lube oil temperature shutdown
A. For System
  • Engine Shutdown is De-activated during
  • AST mode operation
  • High delivery air temperature shutdown
  • High delivery air pressure (relieving to atmosphere)
*Due to continuous development, the dimensions, layout, configuration and specifications are subject to change without notice.

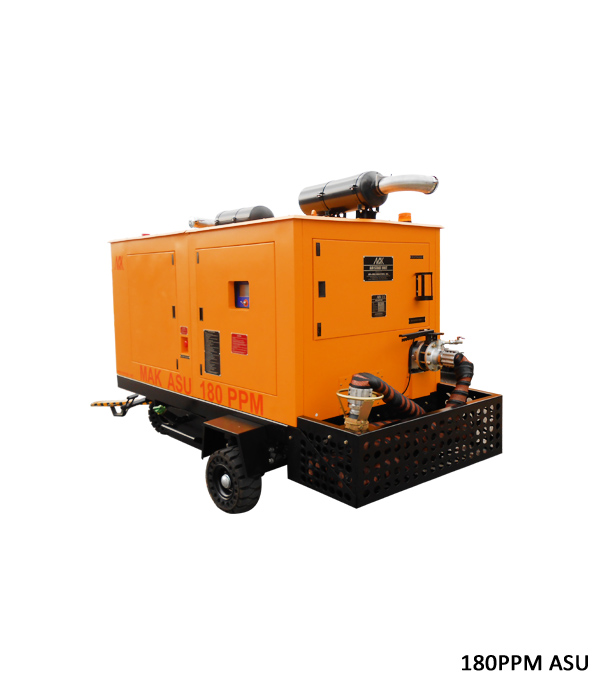

Air Start Unit – 180 PPM
