Load Banks

Home  >   Load Banks

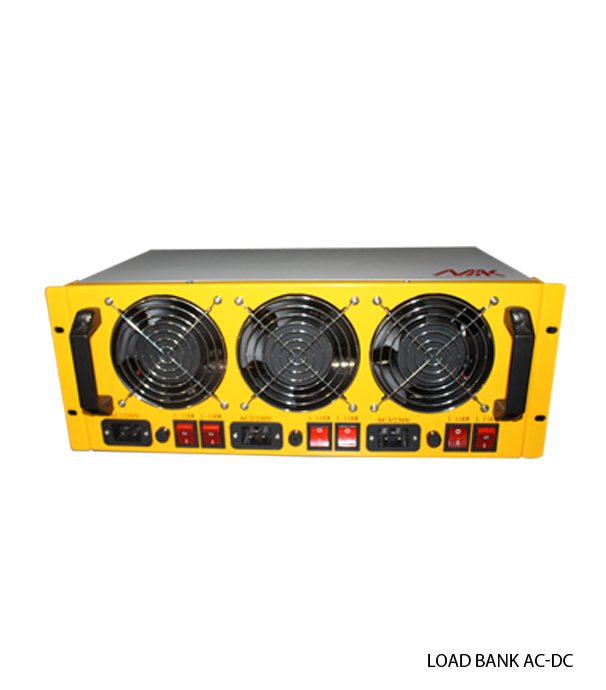

48kW-144kW 400Hz AC, 300A-2500A 28.5V DC – Digital USB

Our Load banks come with latest digital communication via USB, portable and come in a hardened shipping trolley that can be taken everywhere.

Salient Features

  • High performance cooling system with fan failure indication
  • Standard aircraft power receptacle
  • Compact & lightweight aluminum enclosure
  • Trolley with rollers for easy movement
  • Linear and step-less continuous load regulation
  • E & F circuit indicator
  • 300A continuous load simulating aircraft starting conditions (Load Bank DC)

Overview

  • Simplified operations apt for even non-trained personnel
  • Portable – Shipping case with wheels for easy transportation
  • Highly quiet operation
  • Digital operations with USB
  • Varied applications for tarmac or hangar

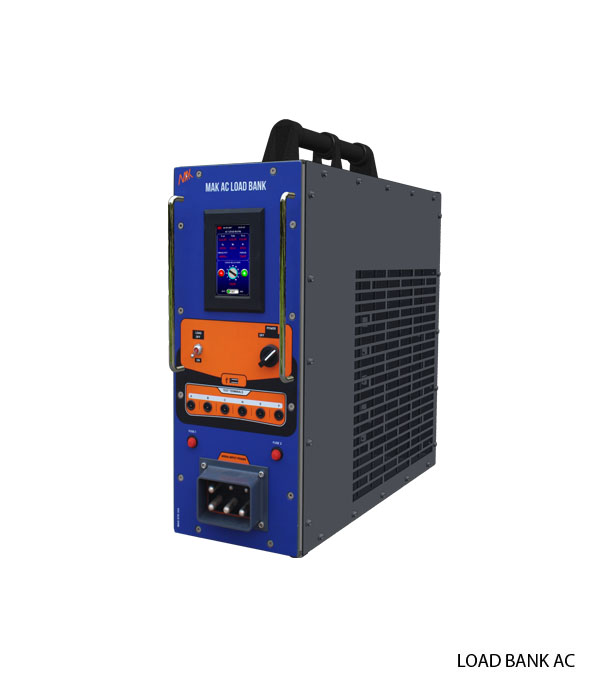

TECHNICAL SPECIFICATIONS – LOAD BANK – AC

VOLTAGE (AC) : 115V/200V±10%
FREQUENCY (Hz) : 400Hz±10%
LOAD : 48 to 144 kW±5% (CosØ=1)
DISPLAY : Red LED High Brightness for V/A/kW
LOAD STEPS (GPU test) : 0-100% load raising within 30 seconds
Hold at 100% for 5 minutes
100%-0% load decreasing within 10 minutes
LOAD STEPS (Engine
decarbonising)
: 0-100% load raising within 30 seconds
Hold at 100% for 45 minutes
100%-0% load decreasing within 15minutes
FORCED COOLING : 44.10/66.15/88.20 M /min
CONNECTION TO PC : USB (Software included as standard package)
OPERATING TEMPERATURES : -10°C to+55°C
ALTITUDE : Up to 1000m without derating, maximum 2000m
RELATIVE HUMIDITY : 0% to 85% without condensation
NOISE LEVEL : <70 dB
DEGREE OF PROTECTION : IP21

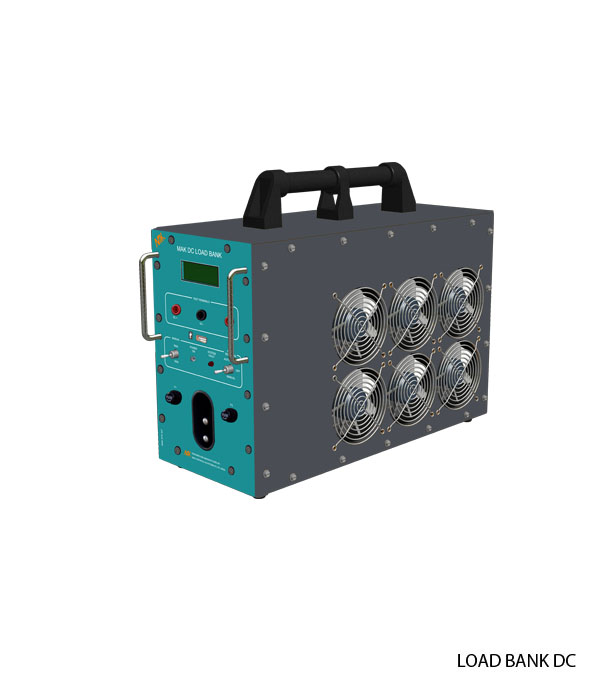

TECHNICAL SPECIFICATIONS – LOADBANK – DC

Volatge (DC) : 28.5V±30%
Load (A) : 300A/1500A/2000A/2500A±10%
Display : Red LED high brightness for V/A/kW
LOAD STEPS :
LB 300A : Load steps-20 minutes Load test procedure
duration 20minutes at 100% load
LB 1500A/2000A : 300A for 20 minutes (OR) 600A for 20 minutes
Load test in 6 steps
1500A-0A/2000A-0A in 35secs.
LB 2500A : 300A for 20 minutes (OR) Load test in 5 steps
1400A-0A in 35 sec (OR)
Load test in 6 steps 2500A-0A in 35secs.
LOAD TEST PROCEDURE : ESS-Engine start simulation
FORCED COOLING : 22.05/44.10 M /min
CONNECTION TO PC : USB (Software included as standard package)
OPERATING TEMPERATURES : -10°C to+40°C
ALTITUDE : Up to 1000m without derating, maximum 2000m
RELATIVE HUMIDITY : 0% to 85% without condensation
NOISE LEVEL : <70 dB
DEGREE OF PROTECTION : IP21

*Due to continuous development, dimensions, layout, configuration and specifications are subject to change without notice.
