PMA based power systems

MAK developed various PMA based power systems with variable speed engine, compact coupled to a PMG for defense applications from 2.5kVA to 140kVA (customizable).

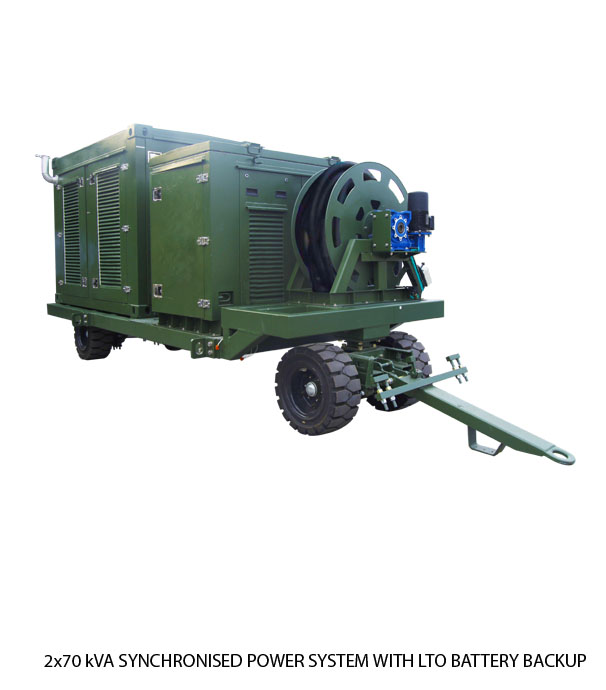

Rated Power: 2x70kVA
Output Voltage: 3ph 415V±2% 50Hz±1%
Operating Temp.: -20° C to +55° C
Storage Temp.: -30° C to +70° C
EMI / EMC: MIL STD 461E

Power Conditioning Unit:

Input Voltage: 3ph 350V AC ± 20%
Input Frequency: 50Hz to 400Hz
Efficiency: 90%
Operating Temp.: -20 °C to +55 °C
Stroage Temp.: -30 °C to +70 °C

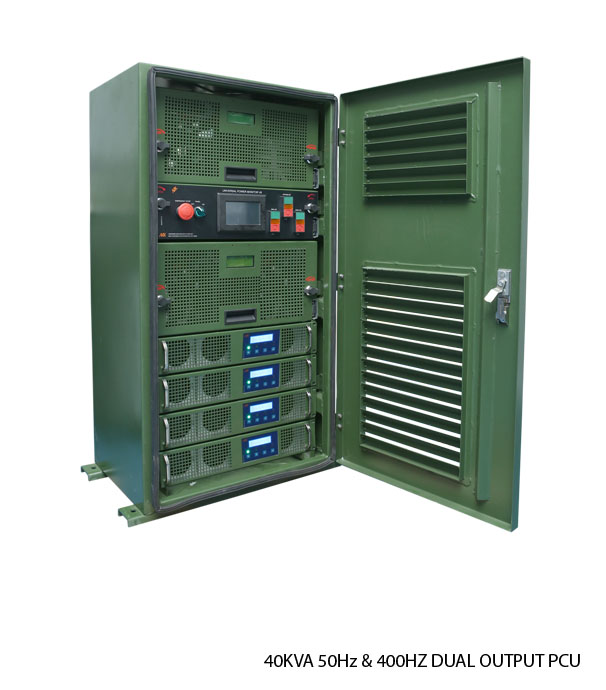

  • This PCU has dual outputs of capacity 40kVA (32kW)
  • 415V 3ph 50Hz
  • 200V 3ph 400Hz
  • It consists of convertor & two inverters in the
    form of independent modules
Note: Due to continuous development – dimensions, layout, configuration and specifications are subject to change without notice.
